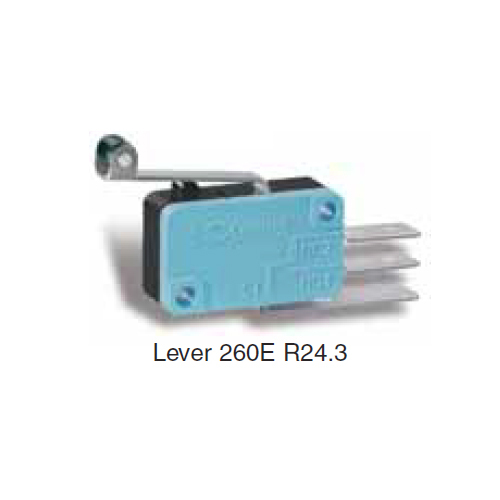

83263048 - Long Roller Lever R24.3mm
Crouzet V3D Micro Switch (Made in France): with Long Roller Lever 260E R24.3mm; 16A; 125/250Vac; 1-Changeover Contact (SPDT); Operating Force Max. 1N; W6A5 Contact Terminals suitable for 4.8mm Clips/Lugs.
Technical Documents
Product Details
Features:
Wide range of switching ratings of 0.1 A to 16 A
V3 standard size
Conforms to ENEC (EN 61058) and UL/CSA
Compliance to RoHS
Glow wire test withstanding to EN 60335
750° without flame
Various applications areas: Industry, consumer equipment, home appliances, HVAC, …
A high capacity to adapt levers, connections, fixing elements, upon request
Specifications
Technical Data
Brand
:
Crouzet
Current Rating
:
16A
Voltage Rating
:
125/250Vac
Max. Operating Force
:
1N
