ProductsEncoder CouplingsFlexible Aluminium Couplings AF-25-8-10 L: 36mm W/o Keyway on both sides

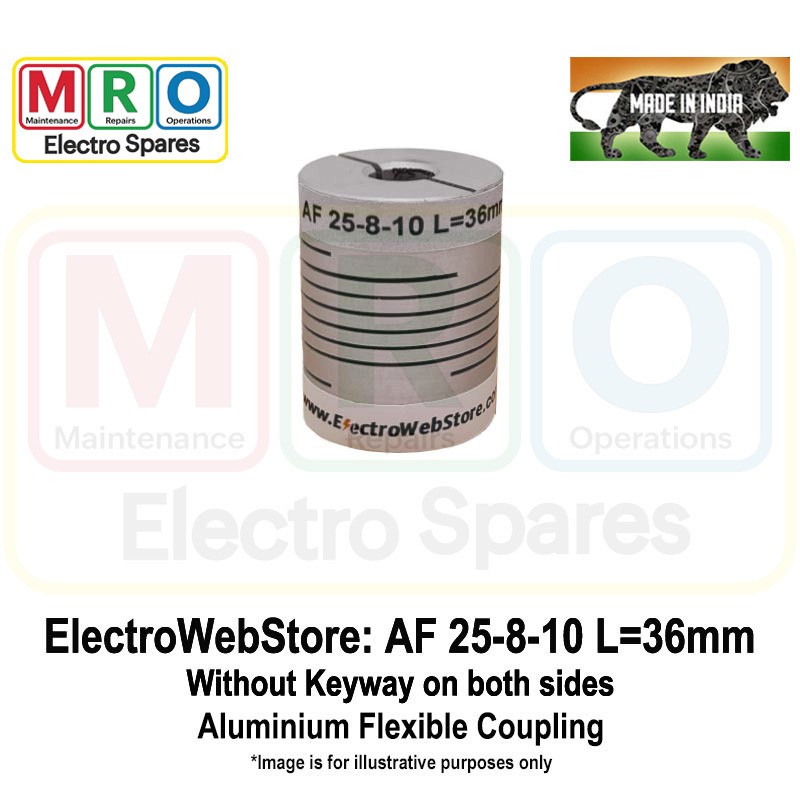

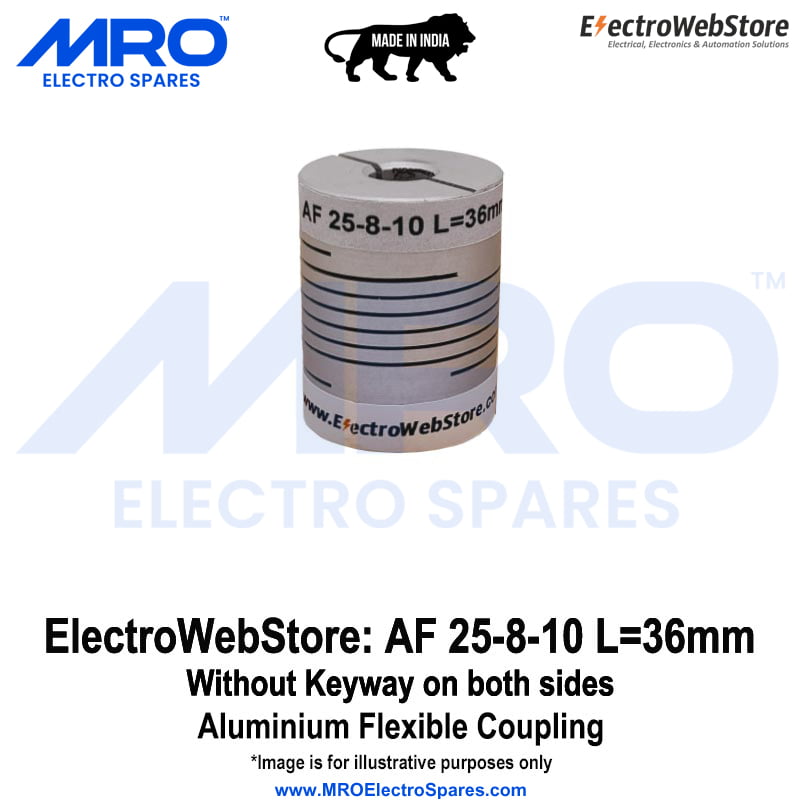

AF-25-8-10 L: 36mm W/o Keyway on both sides

AF-25-8-10 L: 36mm W/o Keyway on both sides

EWS Aluminium Flexible Coupling: OD: 25mm; Length: 36mm.; ID1: 8mm - without Keyway; ID2: 10mm - without Keyway.

Non-returnable
₹275.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Made from Aluminium Alloy

  • Series "AF" has inbuilt flange clamping

  • Angular offset up to 5 Degrees

  • Parallel offset up to 0.2mm - No Backlash

  • Constant velocity transmission

  • Torsionally rigid

  • One piece construction

Specifications
Technical Data
  • Manufacturer
    :
    EWS
  • Series
    :
    AF
  • Material
    :
    Aluminium Alloy
  • Outer Diameter
    :
    25mm
  • Total Length
    :
    36mm
  • ID1 Bore Diameter
    :
    8mm
  • ID1 Keyway
    :
    Without Keyway
  • ID2 Bore Diameter
    :
    10mm
  • ID2 Keyway
    :
    Without Keyway
  • Weight
    :
    45 grams
