Encoder CouplingsFlexible Aluminium Couplings AF-38-11-15 L: 60mm With Keyway on both sides
AF-38-11-15 L: 60mm With Keyway on both sides

AF-38-11-15 L: 60mm With Keyway on both sides

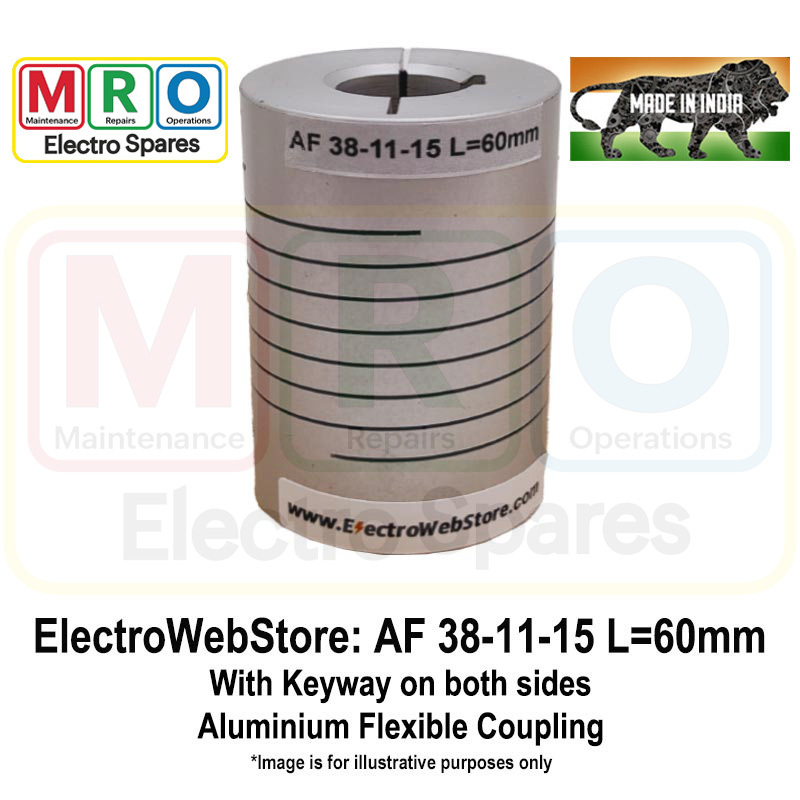

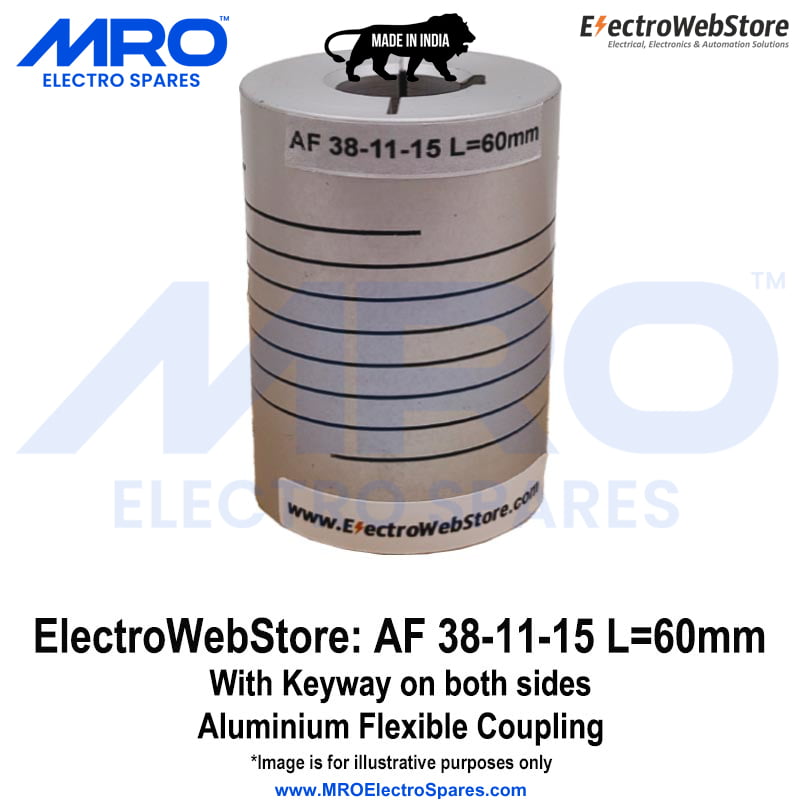

EWS Aluminium Flexible Coupling: OD: 38mm; Length: 60mm; ID1: 11mm WITH Keyway; ID2: 15mm WITH Keyway.

Non-returnable
₹880.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Made from Aluminium Alloy

  • Series "AF" has inbuilt flange clamping

  • Angular offset up to 5 Degrees

  • Parallel offset up to 0.2mm - No Backlash

  • Constant velocity transmission

  • Torsionally rigid

  • One piece construction

Specifications
Technical Data
  • Manufacturer
    :
    EWS
  • Series
    :
    AF
  • Material
    :
    Aluminium Alloy
  • Outer Diameter
    :
    38mm
  • Total Length
    :
    60mm
  • ID1 Bore Diameter
    :
    11mm
  • ID1 Keyway
    :
    With Keyway
  • ID2 Bore Diameter
    :
    15mm
  • ID2 Keyway
    :
    With Keyway
  • Weight
    :
    150 grams
