ProductsFusesSemiconductor Protection FusesUR DIN Knife Type Fuses 170M1559D
170M1559D
170M1559D
170M1559D

170M1559D

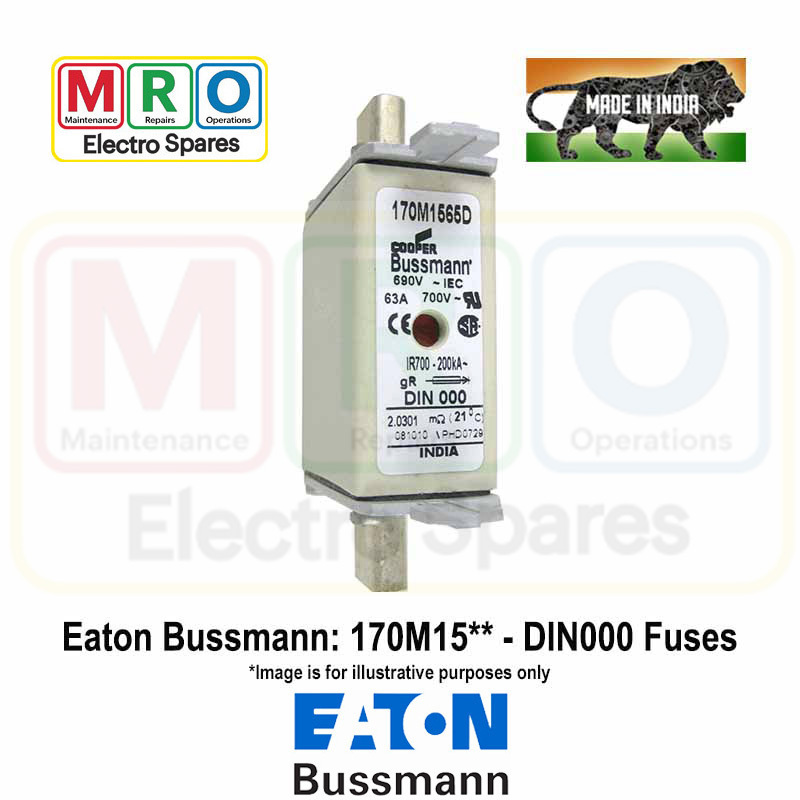

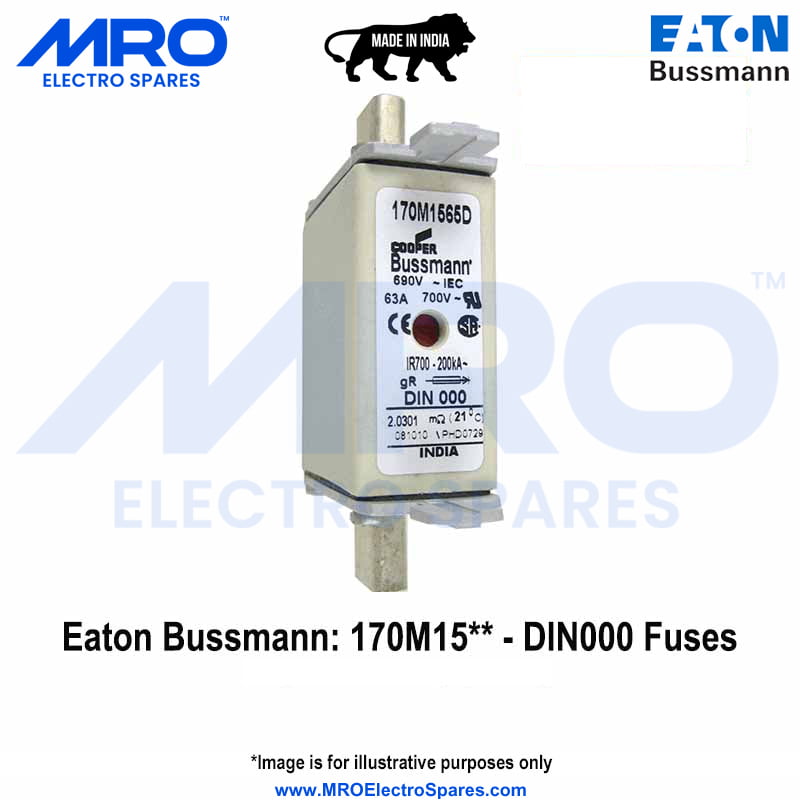

Eaton Bussmann DIN Knife Blade Semiconductor Protection Fuses with Dual Indicator: 16 Amps, 690/700 Vac/200 kA, Operating Class: gR, Size: DIN000/NH000

Non-returnable
₹790.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Class gR (10-63A); aR (80-315A) Semiconductor Protection Fuses

  • Confirming to DIN 43620, IEC 60269-4, CE

  • CSA Class 1422-30, (53787)

  • UL recognised, JFHR2, E125085

  • All Fuses have Dual blown fuse indicator

Specifications
Technical Data
  • Manufacturer
    :
    Eaton Bussmann
  • Fuse Type
    :
    High Speed Knife Blade
  • Operating Class
    :
    gR
  • Series
    :
    170M15**D
  • Current Rating (A)
    :
    16A
  • Voltage Rating (Vac)
    :
    690/700 Vac
  • AC Breaking Capacity (kA)
    :
    200 kA
  • Size
    :
    DIN000/NH000
  • Pre-Arcing I2t Value A2s
    :
    7.2
  • Total I2t Value A2s
    :
    48
  • Power Loss (W)
    :
    5.5 W
  • Fuse Blown Indicator
    :
    Dual
  • Standards
    :
    CE/IEC60269-4/UL JFHR2 E125085/ CSA Class 1422-30 (53787)
  • Weight
    :
    130 grams
