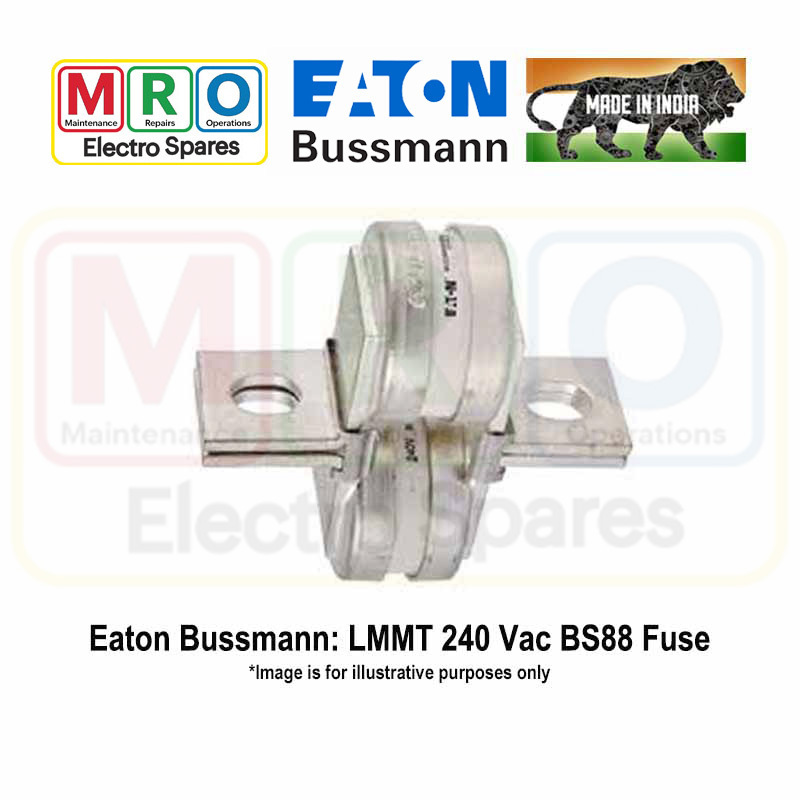

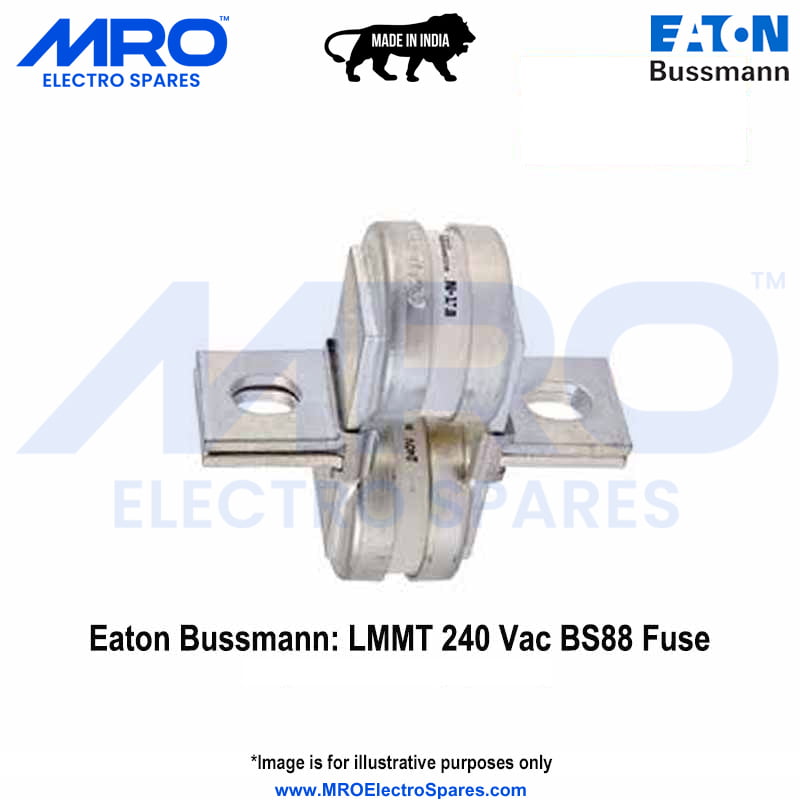

Eaton Bussmann BS88 Semiconductor Protection Fuses: 630 Amps, 240/250 Vac, 150 Vdc, Size: 2x38x59mm

Non-returnable
₹2,015.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Bolted Tag High Speed Fuses in compact design

  • Designed and tested to BS88 Part 4 and IEC 60269 Part 4

  • Superior current limiting features

  • Fuses for protection of DC Common Bus, DC Drives, Power Converters/Rectifiers, Starters

  • High-speed clearance of AC/DC faults

  • Low Watts loss in a compact size

  • Operating Class: aR

Specifications
Technical Data
  • Manufacturer
    :
    Eaton Bussmann
  • Fuse Type
    :
    BS88 240 Vac Fuses
  • Operating Class
    :
    aR
  • Series
    :
    LMMT
  • Current Rating (A)
    :
    630A
  • Voltage Rating (Vac)
    :
    240 Vac
  • AC Breaking Capacity (kA)
    :
    200 kA
  • Voltage Rating (Vdc)
    :
    150 Vdc
  • DC Breaking Capacity (kA)
    :
    50 kA
  • Size
    :
    2x38x59mm
  • Pre-Arcing I2t Value A2s
    :
    24000
  • Total I2t Value A2s
    :
    300000
  • Power Loss (W)
    :
    75.0 W
  • Fuse Blown Indicator
    :
    Clip-On - Optional
  • Standards
    :
    BS88-4 / IEC60269-4 / UL / CE
  • Weight
    :
    370 grams
