63LET

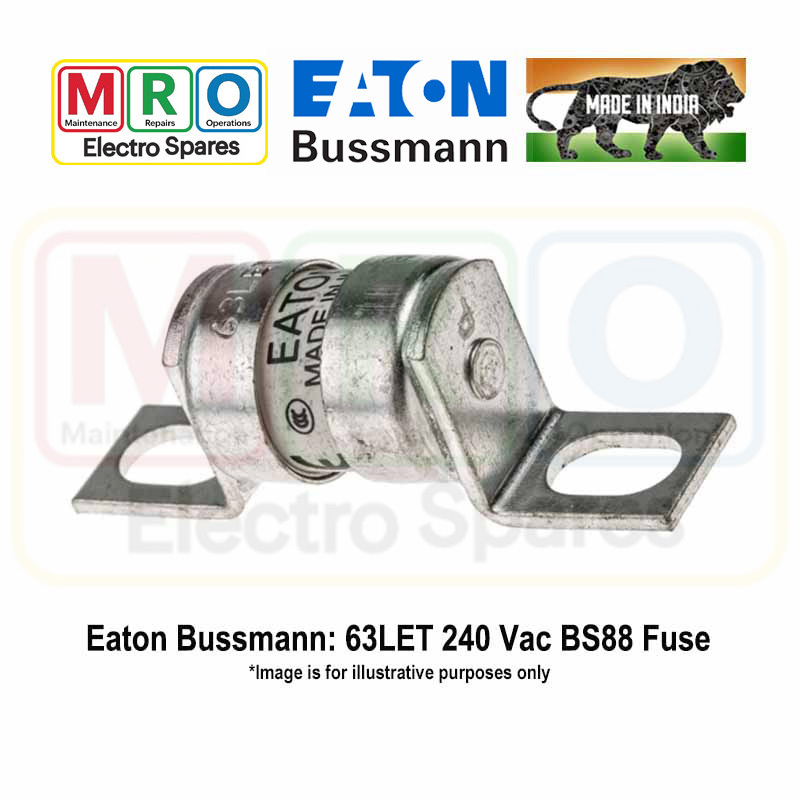

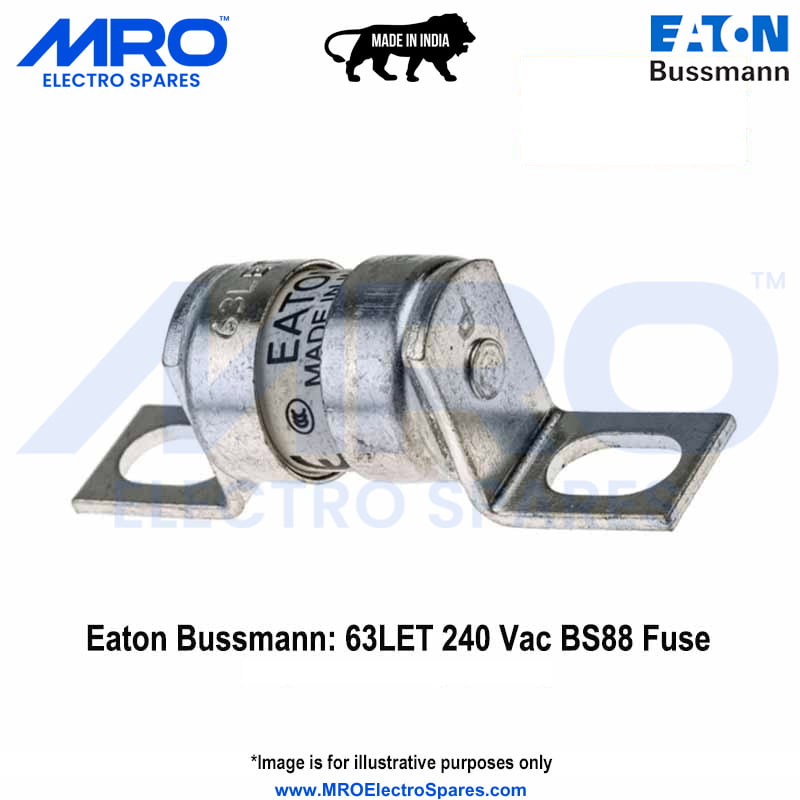

Eaton Bussmann BS88 Semiconductor Protection Fuses: 63 Amps, 280 Vac, 150 Vdc, Size: 17.7x41.8mm
Non-returnable
₹336.00
Technical Documents
Share :
Product Details
Features:
Bolted Tag High Speed Fuses in compact design
Designed and tested to BS88 Part 4 and IEC 60269 Part 4
Superior current limiting features
Fuses for protection of DC Common Bus, DC Drives, Power Converters/Rectifiers, Starters
High-speed clearance of AC/DC faults
Low Watts loss in a compact size
Operating Class: aR
Specifications
Technical Data
- Manufacturer:Eaton Bussmann
- Fuse Type:BS88 240 Vac Fuses
- Operating Class:aR
- Series:LET
- Current Rating (A):63A
- Voltage Rating (Vac):240 Vac
- AC Breaking Capacity (kA):200 kA
- Voltage Rating (Vdc):125 Vdc
- DC Breaking Capacity (kA):50 kA
- Size:17.7x41.8mm
- Pre-Arcing I2t Value A2s:180
- Total I2t Value A2s:2200
- Power Loss (W):9.0 W
- Fuse Blown Indicator:Clip-On - Optional
- Standards:BS88-4 / IEC60269-4 / UL / CE
- Weight:31 grams
