ProductsSwitch Mode Power Supplies (SMPS)DIN Rail Mounting Single Phase SMPS HDR-150-12

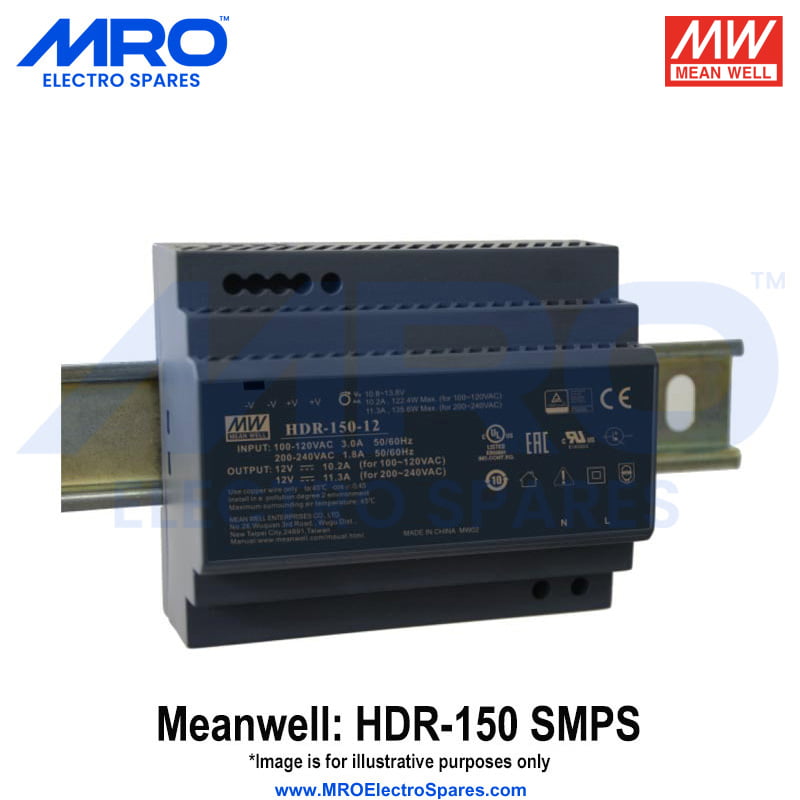

HDR-150-12

Meanwell Single Phase DIN Rail Mounting 150 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 12 Vdc/0 - 11.3 Amps; Tol.: +/-2%; R&N: 100 mV; Effi.: 89.0%; WxHxD: 105x90x54.5mm

Non-returnable
₹2,365.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Ultra slim design with 105mm (6SU) width, DIN Rail mounting
  • Universal input 85~264VAC(277VAC operational)
  • No load power consumption <0.3W
  • Isolation class II
  • Pass LPS (Limited Power Source) for Blank type
  • DC Output Voltage adjustable
  • Protections: Short Circuit/Overload/Over Voltage
  • Over Voltage category III
  • Cooling by free air convection (working temperature:-30 to +70°C)
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    HDR
  • Wattage
    :
    150 W
  • Output Voltage (DC)
    :
    12 Vdc
  • Output Current (A)
    :
    0 - 11.30 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    85-264 Vac
  • Input Voltage (DC)
    :
    120-370 Vdc
  • Tolerance
    :
    +/-2%
  • Ripple & Noise (max.)
    :
    100mV
  • Efficiency (Typ.)
    :
    89.00%
  • Protections
    :
    Short Circuit; Overload; Over Voltage
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    105x90x54.5mm
  • Weight/Piece
    :
    310 grams
  • Warranty
    :
    1-Year
