ProductsSwitch Mode Power Supplies (SMPS)Enclosed Panel Mounting SMPS (Single Phase) LRS-350-36

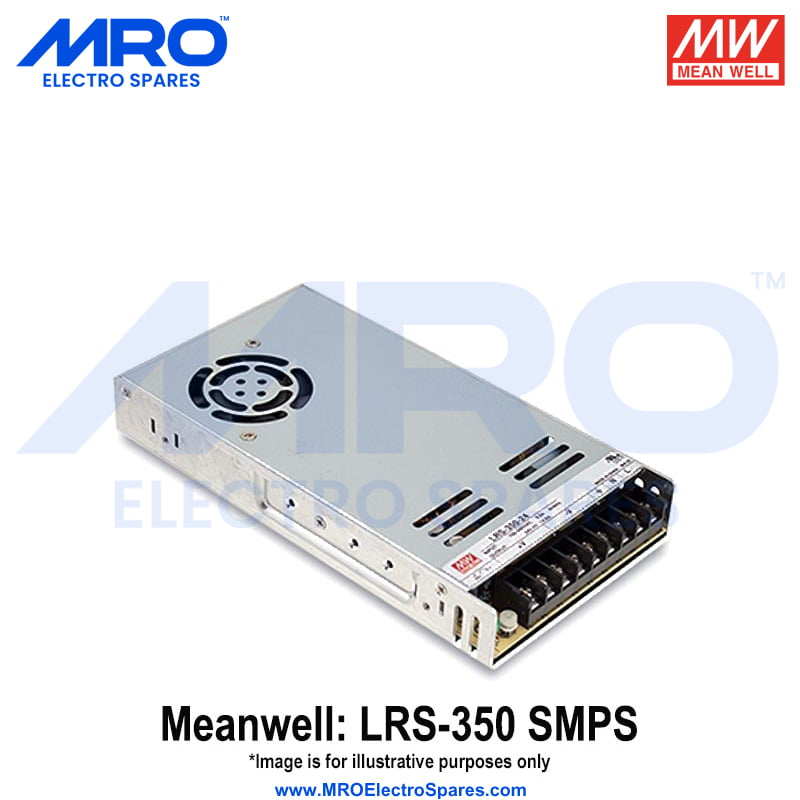

LRS-350-36

Meanwell Single Phase Panel Mounting 350 Watts SMPS, Input: 115/230 Vac by Selector Switch; Output: 36 Vdc/0 - 9.7 Amps; Tol.: +/-1%; R&N: 200 mV; Effi.: 88.5%; LxWxH: 215x115x30mm

Non-returnable
₹2,115.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • No load power consumption <0.75W
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
  • Withstand 5G vibration test
  • High efficiency, long life and high reliability
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    LRS
  • Wattage
    :
    350 W
  • Output Voltage (DC)
    :
    36 Vdc
  • Output Current (A)
    :
    0 - 9.70 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    Enclosed Panel Mounting
  • Input Voltage (AC)
    :
    115/230 Vac
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    200mV
  • Efficiency (Typ.)
    :
    88.50%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    215x115x30mm
  • Weight/Piece
    :
    760 grams
  • Warranty
    :
    1-Year
