ProductsSwitch Mode Power Supplies (SMPS)DIN Rail Mounting Single Phase SMPS MDR-10-15

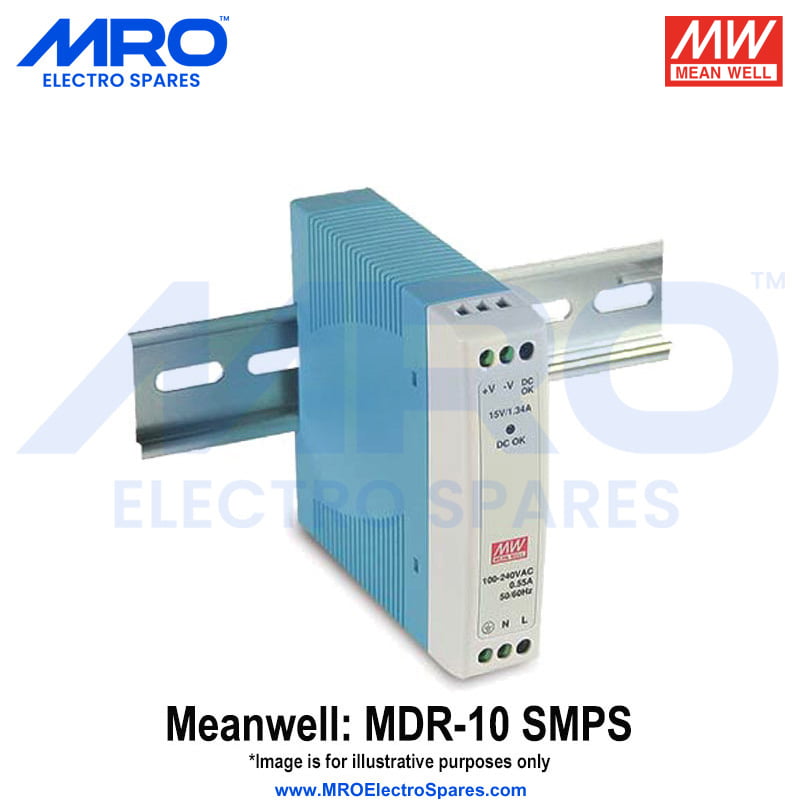

MDR-10-15

Meanwell Single Phase DIN Rail Mounting 10 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 15 Vdc/0 - 0.67 Amps; Tol.: +/-3%; R&N: 120 mV; Effi.: 81%; WxHxD: 22.5x90x100mm

Non-returnable
₹810.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input/Full range
  • Protections: Short circuit / Overload/ Over voltage
  • Cooling by free air convection
  • Built in DC OK active signal
  • No load power consumption <0.75W
  • LED indicator for Power ON
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    MDR
  • Wattage
    :
    10 W
  • Output Voltage (DC)
    :
    15 Vdc
  • Output Current (A)
    :
    0 - 0.67 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    85-264 Vac
  • Input Voltage (DC)
    :
    120-370 Vdc
  • Tolerance
    :
    +/-3%
  • Ripple & Noise (max.)
    :
    120mV
  • Efficiency (Typ.)
    :
    81.00%
  • Protections
    :
    Short Circuit; Overload; Over Voltage
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    22.5x90x100mm
  • Weight/Piece
    :
    150 grams
  • Warranty
    :
    1-Year
