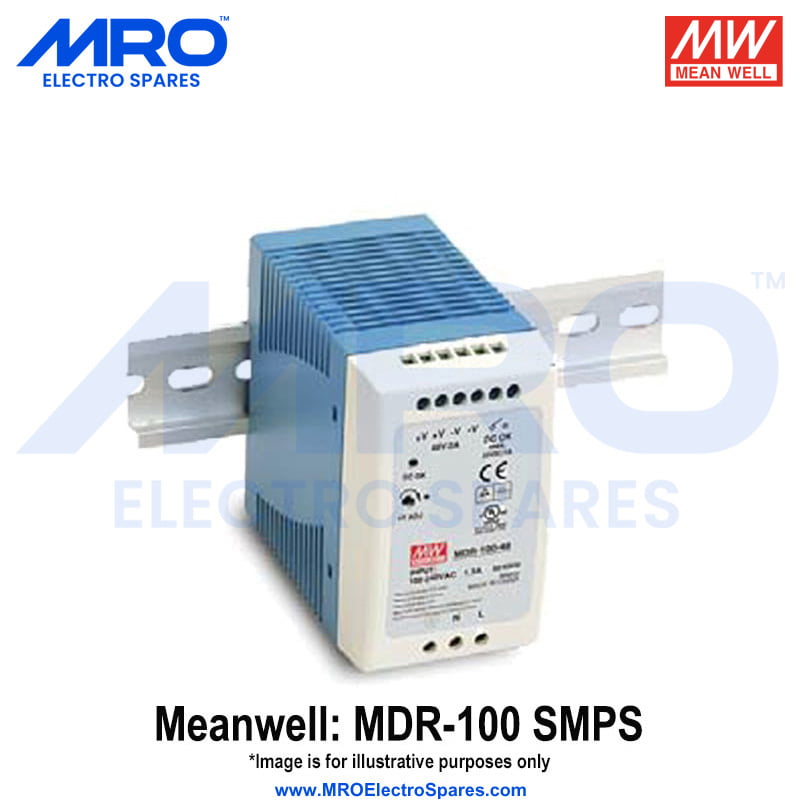

MDR-100-24

Meanwell Single Phase DIN Rail Mounting 100 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 24 Vdc/0 - 4.0 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 86%; WxHxD: 55x90x100mm

Non-returnable
₹2,280.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input/Full range
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • ZCS/ZVS Technology to reduce power dissipation
  • Cooling by free air convection
  • DC OK Relay contact
  • No load power consumption <1W
  • LED indicator for Power ON
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    MDR
  • Wattage
    :
    100 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 4.00 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    85-264 Vac
  • Input Voltage (DC)
    :
    120-370 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    150mV
  • Efficiency (Typ.)
    :
    86.00%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    55x90x100mm
  • Weight/Piece
    :
    420 grams
  • Warranty
    :
    1-Year
