NDR-480-24

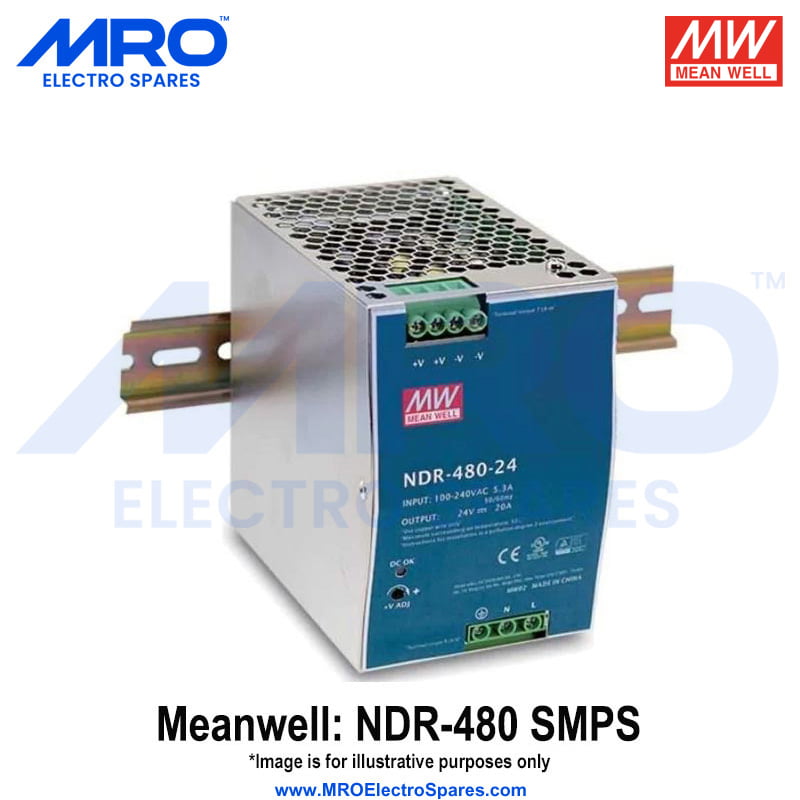

Meanwell Single Phase DIN Rail Mounting 480 Watts SMPS, Input: 90-264 Vac/127-370 Vdc; Output: 24 Vdc/0 - 20 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 92.5%; WxHxD: 85.5x125.2x128.5mm

Non-returnable
₹6,475.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input/Full range
  • Built-in active PFC function
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • Cooling by free air convection
  • UL 508 (industrial control equipment) approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    NDR
  • Wattage
    :
    480 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 20.00 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    90-264 Vac
  • Input Voltage (DC)
    :
    127-370 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    150mV
  • Efficiency (Typ.)
    :
    92.50%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Dimensions WxHxD (mm)
    :
    85.5x125.2x128.5mm
  • Weight/Piece
    :
    1500 grams
  • Warranty
    :
    1-Year
