ProductsSwitch Mode Power Supplies (SMPS)Enclosed Panel Mounting SMPS (Single Phase) RS-25-5
RS-25-5
RS-25-5
RS-25-5

RS-25-5

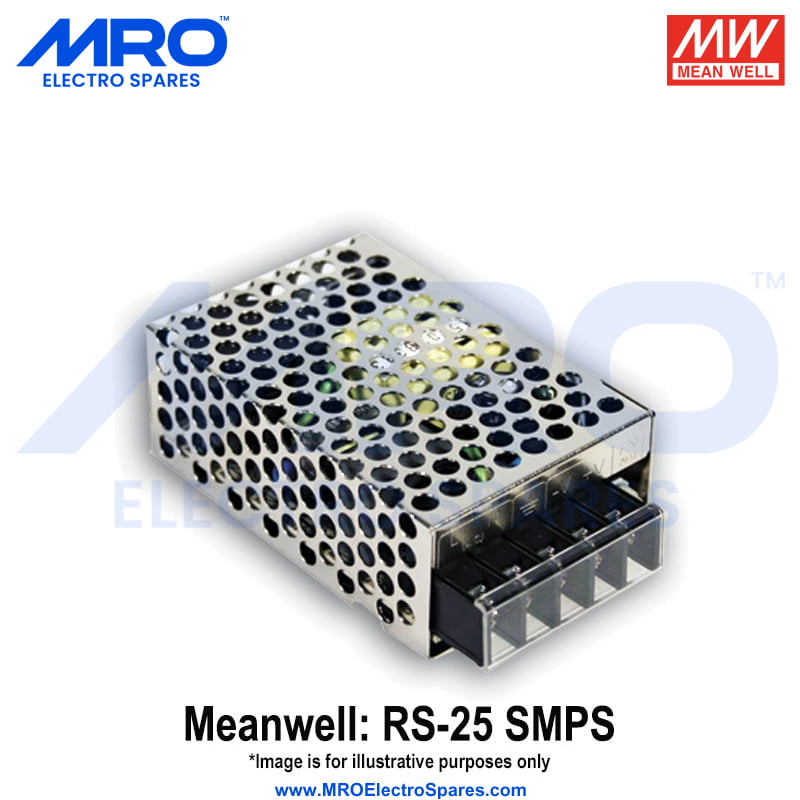

Meanwell Single Phase Panel Mounting 25 Watts SMPS, Input: 88-264 Vac/125-373 Vdc; Output: 5 Vdc/0 - 5 Amps; Tol.: +/-2%; R&N: 80 mV; Effi.: 78.5%; LxWxH: 78x51x28mm

Non-returnable
₹710.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input / Full range
  • Withstand 300VAC surge input for 5 seconds
  • No load power consumption <0.5W
  • High operating temperature up to 70°C
  • High efficiency, long life and high reliability
  • Withstand 5G vibration test
  • All using 105°C long life electrolytic capacitors
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    RS
  • Wattage
    :
    25 W
  • Output Voltage (DC)
    :
    5 Vdc
  • Output Current (A)
    :
    0 - 5.00 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    Enclosed Panel Mounting
  • Input Voltage (AC)
    :
    88-264 Vac
  • Input Voltage (DC)
    :
    125-373 Vdc
  • Tolerance
    :
    +/-2%
  • Ripple & Noise (max.)
    :
    80mV
  • Efficiency (Typ.)
    :
    78.50%
  • Protections
    :
    Short Circuit; Overload; Over Voltage
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    78x51x28mm
  • Weight/Piece
    :
    200 grams
  • Warranty
    :
    1-Year
