ProductsSwitch Mode Power Supplies (SMPS)Enclosed Panel Mounting SMPS (Single Phase) RSP-150-24

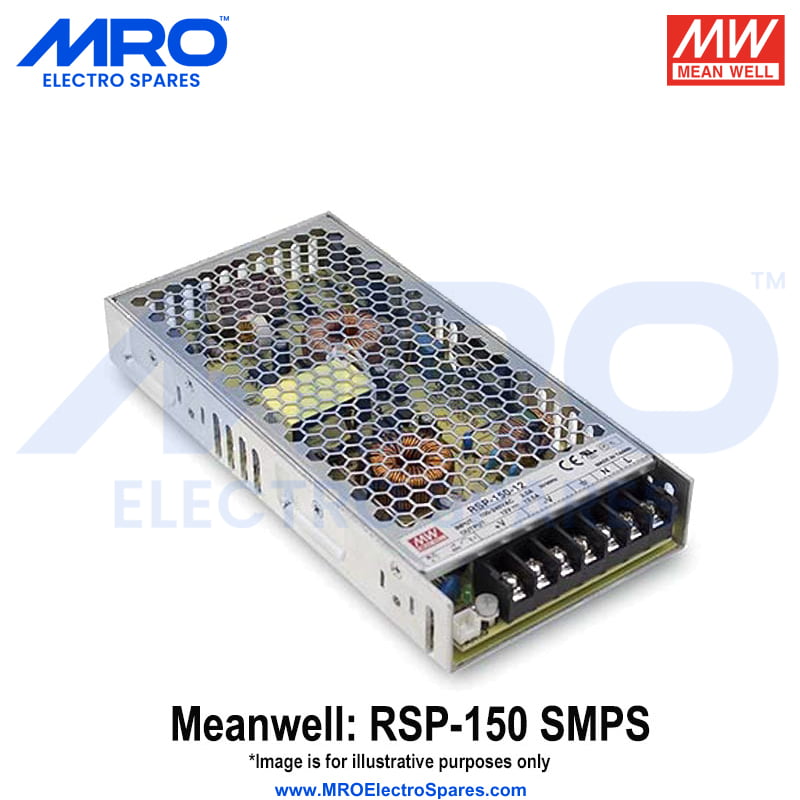

RSP-150-24

Meanwell Single Phase Panel Mounting 150 Watts SMPS, Input: 85-264 Vac/120-370 Vdc; Output: 24 Vdc/0 - 6.3 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 89.0%; LxWxH: 199x99x30mm

Non-returnable
₹2,500.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Cooling by free air convection
  • Built-in remote ON-OFF Control
  • LED Indicator for Power ON
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    RSP
  • Wattage
    :
    150 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 6.30 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    Enclosed Panel Mounting
  • Input Voltage (AC)
    :
    85-264 Vac
  • Input Voltage (DC)
    :
    120-370 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    150mV
  • Efficiency (Typ.)
    :
    89.00%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    199x99x30mm
  • Weight/Piece
    :
    600 grams
  • Warranty
    :
    1-Year
