ProductsSwitch Mode Power Supplies (SMPS)Enclosed Panel Mounting SMPS (Single Phase) RSP-200-5

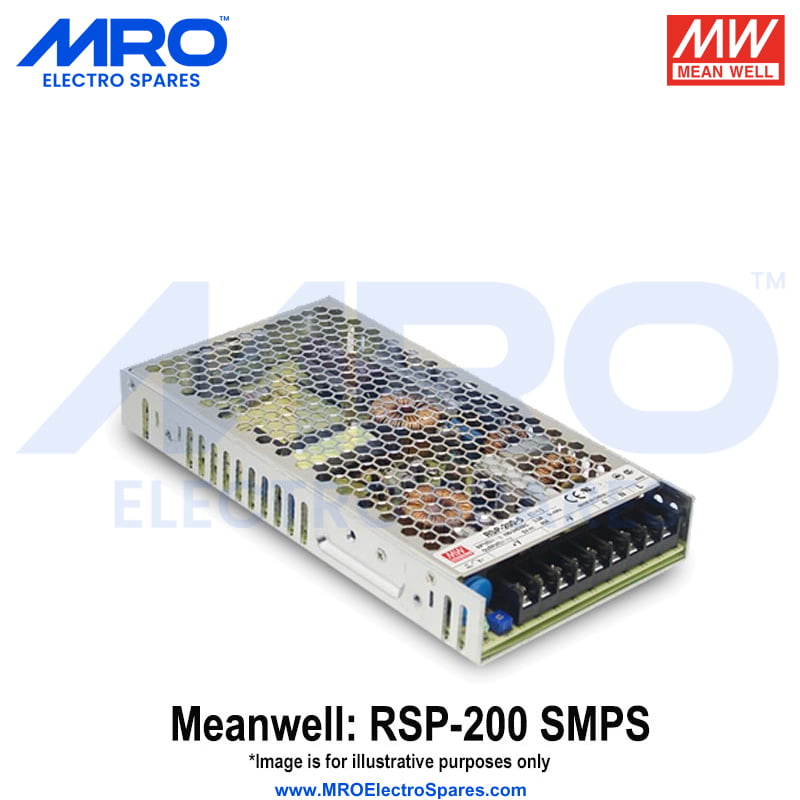

RSP-200-5

Meanwell Single Phase Panel Mounting 200 Watts SMPS, Input: 88-264 Vac/124-370 Vdc; Output: 5 Vdc/0 - 40 Amps; Tol.: +/-2%; R&N: 150 mV; Effi.: 85.5%; LxWxH: 215x115x30mm

Non-returnable
₹2,835.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 90%
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Cooling by free air convection
  • LED Indicator for Power ON
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    RSP
  • Wattage
    :
    200 W
  • Output Voltage (DC)
    :
    5 Vdc
  • Output Current (A)
    :
    0 - 40.00 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    Enclosed Panel Mounting
  • Input Voltage (AC)
    :
    88-264 Vac
  • Input Voltage (DC)
    :
    124-370 Vdc
  • Tolerance
    :
    +/-2%
  • Ripple & Noise (max.)
    :
    150mV
  • Efficiency (Typ.)
    :
    85.50%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Indication
    :
    Power ON LED
  • Dimensions WxHxD (mm)
    :
    215x115x30mm
  • Weight/Piece
    :
    720 grams
  • Warranty
    :
    1-Year
