ProductsSwitch Mode Power Supplies (SMPS)Enclosed Panel Mounting SMPS (Single Phase) RSP-2000-24

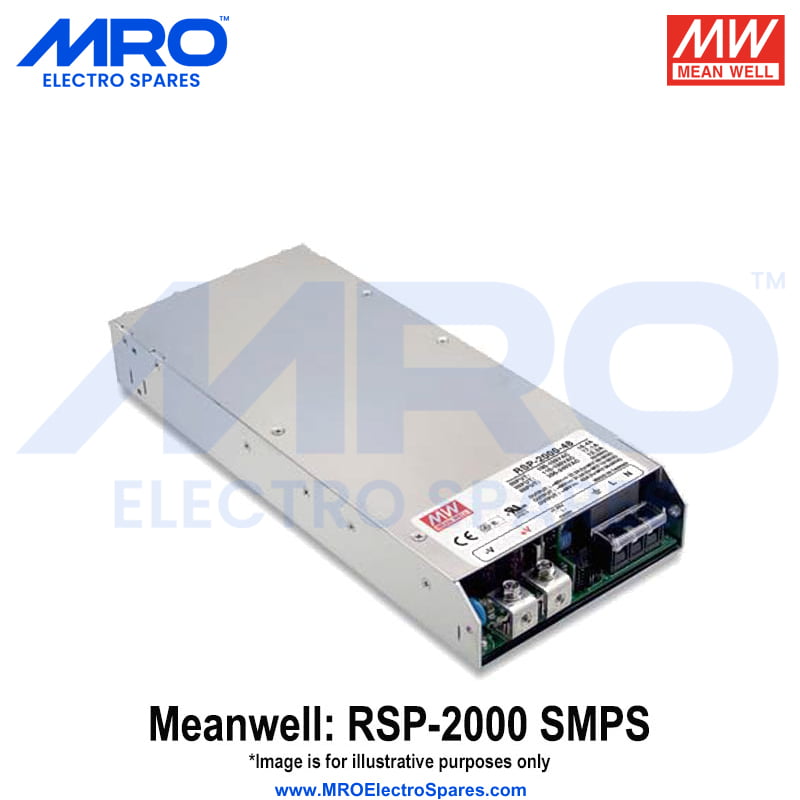

RSP-2000-24

Meanwell Single Phase Panel Mounting 2000 Watts SMPS, Input: 90-264 Vac/127-320 Vdc; Output: 24 Vdc/0 - 80 Amps; Tol.: +/-1%; R&N: 200 mV; Effi.: 90.5%; LxWxH: 295x127x41mm

Non-returnable
₹32,060.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Universal AC input / Full range
  • Built-in active PFC function
  • High efficiency up to 92%
  • Protections: Short Circuit / Overload / Over Voltage / Over Temperature
  • Forced air cooling by built-in DC Fan
  • Built-in remote ON-OFF Control / Remote Sense / Auxiliary Power / DC OK Signal / OTP Alarm Signal
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    RSP
  • Wattage
    :
    2000 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 80.00 A
  • Product Type
    :
    Single Phase/Single Output SMPS
  • Mounting Type
    :
    Enclosed Panel Mounting
  • Input Voltage (AC)
    :
    90-264 Vac
  • Input Voltage (DC)
    :
    127-320 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    200mV
  • Efficiency (Typ.)
    :
    90.50%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    DC Fan
  • Dimensions WxHxD (mm)
    :
    295x127x41mm
  • Weight/Piece
    :
    1950 grams
  • Warranty
    :
    1-Year
