ProductsSwitch Mode Power Supplies (SMPS)DIN Rail Mounting 3-Phase SMPS TDR-960-24

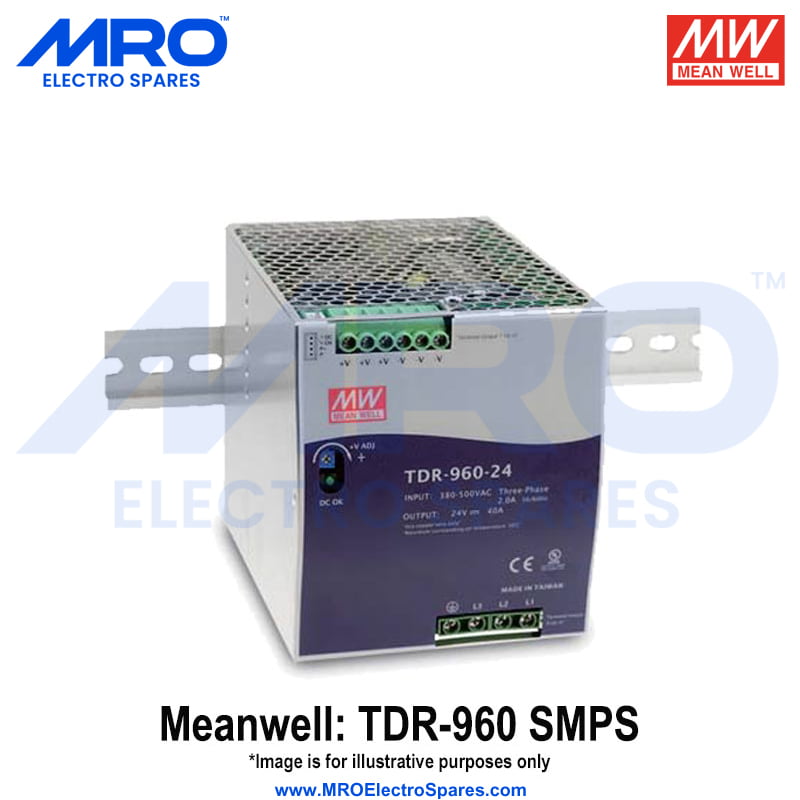

TDR-960-24

Meanwell 3-Phase (Dual Phase operation possible) DIN Rail Mounting 960 Watts SMPS, Input: 340-550 Vac/480-780 Vdc; Output: 24 Vdc/0 - 40 Amps; Tol.: +/-1%; R&N: 180 mV; Effi.: 94%; WxHxD: 110x125.2x150mm

Non-returnable
₹16,640.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    TDR
  • Wattage
    :
    960 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 40.00 A
  • Product Type
    :
    3-Phase/2-Phase SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    340-550 Vac
  • Input Voltage (DC)
    :
    480-780 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    180mV
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Dimensions WxHxD (mm)
    :
    110x125.2x150mm
  • Weight/Piece
    :
    2470 grams
  • Warranty
    :
    1-Year
