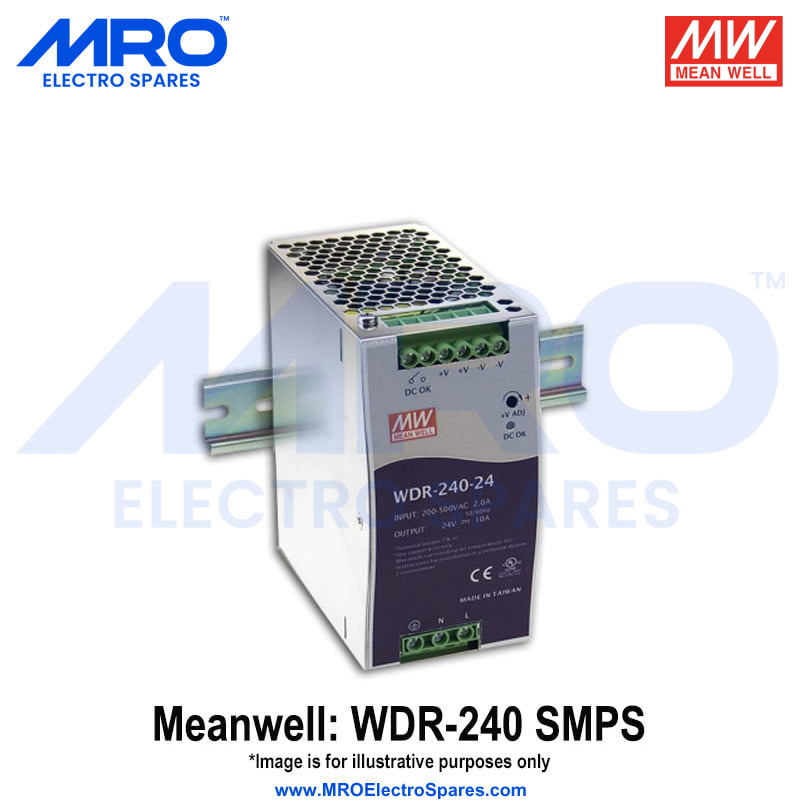

WDR-240-24
WDR-240-24
WDR-240-24

WDR-240-24

Meanwell Single and Two Phase with Wide Input Voltage Range DIN Rail Mounting 240 Watts SMPS, Input: 180-550 Vac/254-780 Vdc; Output: 24 Vdc/0 - 10 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 91%; WxHxD: 63x125.2x113.5mm

Non-returnable
₹9,325.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • Single and Two Phase wide input range 180 to 550VAC
  • Built-in active PFC circuit compliance to BS EN/EN61000-3-2
  • High efficiency 91 % and low power dissipation
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • UL508(industrial control equipment)approved
  • BS EN/EN61000-6-2(BS EN/EN50082-2) industrial immunity level
  • Cooling by free air convection
  • Built-in DC OK Relay contact
  • 100% full load burn-in test
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    WDR
  • Wattage
    :
    240 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 10.00 A
  • Product Type
    :
    Single/Two Phase; Single Output SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    180-550 Vac
  • Input Voltage (DC)
    :
    254-780 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    150mV
  • Efficiency (Typ.)
    :
    91.00%
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Dimensions WxHxD (mm)
    :
    63x125.2x113.5mm
  • Weight/Piece
    :
    1060 grams
  • Warranty
    :
    1-Year
