ProductsSwitch Mode Power Supplies (SMPS)DIN Rail Mounting Single Phase SMPS WDR-60-24

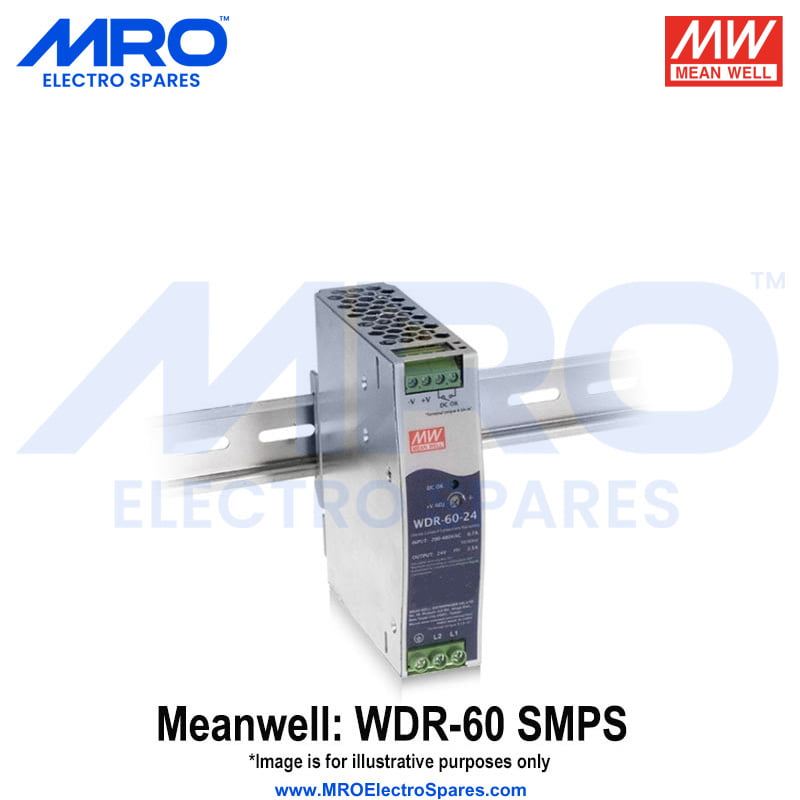

WDR-60-24

Meanwell Single and Two Phase with Wide Input Voltage Range DIN Rail Mounting 60 Watts SMPS, Input: 180-550 Vac/254-780 Vdc; Output: 24 Vdc/0 - 2.5 Amps; Tol.: +/-1%; R&N: 150 mV; Effi.: 89%/400Vac; WxHxD: 32x125.2x102mm

Non-returnable
₹2,920.00
Technical Documents
Catalogue PDF
Product Details

Features:

  • 180 to 550 Vac ultra wide input for 1-phase or 2-phase
  • 4.7 KVac I/O high isolation(Reinforced Isolation)
  • Protections: Short Circuit/Overload/Over Voltage/Over Temperature
  • 32mm slim width
  • -30 to +85°C ultra-wide operating temperature (>+60°C derating)
  • Over Voltage category III
  • Cooling by free air convection
  • DC OK Relay contact
  • DC Output Voltage adjustable (+20%)
  • Warranty: 1-Year from date of purchase

Specifications
Technical Data
  • Manufacturer
    :
    Meanwell
  • Series
    :
    WDR
  • Wattage
    :
    60 W
  • Output Voltage (DC)
    :
    24 Vdc
  • Output Current (A)
    :
    0 - 2.50 A
  • Product Type
    :
    Single/Two Phase; Single Output SMPS
  • Mounting Type
    :
    DIN Rail Mounting
  • Input Voltage (AC)
    :
    180-550 Vac
  • Input Voltage (DC)
    :
    254-780 Vdc
  • Tolerance
    :
    +/-1%
  • Ripple & Noise (max.)
    :
    150mV
  • Efficiency (Typ.)
    :
    89.00% (400Vac)
  • Protections
    :
    Short Circuit; Overload; Over Voltage; Over Temperature
  • Cooling by
    :
    Free Air Convection
  • Dimensions WxHxD (mm)
    :
    32x125.2x102mm
  • Weight/Piece
    :
    450 grams
  • Warranty
    :
    1-Year
