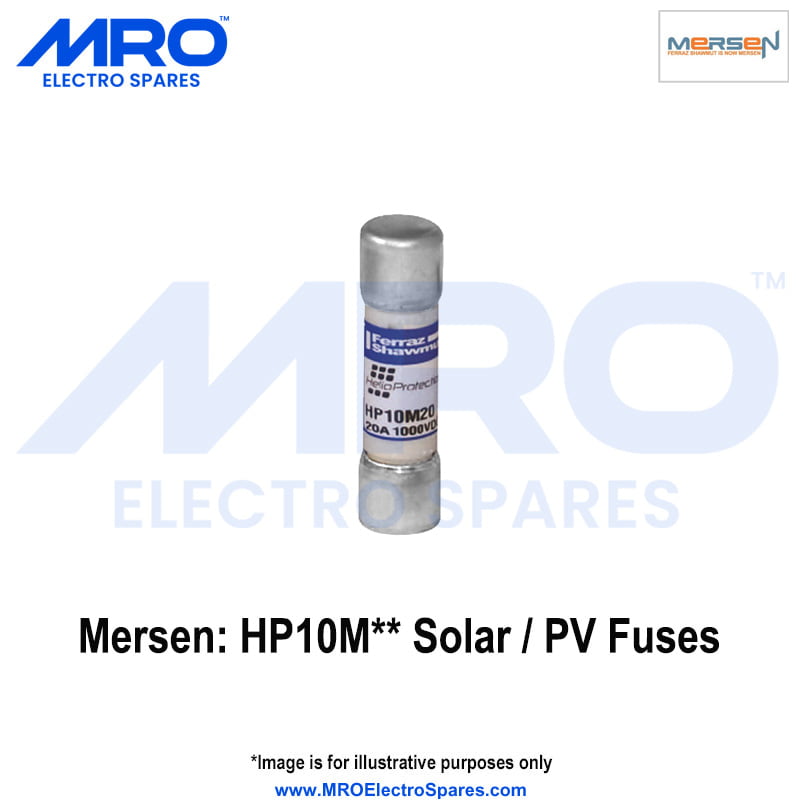

Mersen Cylindrical Solar/PV-Fuses: 25 Amps, 1000 Vdc/50kA, Operating Class: gPV, Size: 10x38mm, without Indicator
Technical Documents
Product Details
Features:
- Globally accepted robust Photovoltaic Systems Protection Fuses
- Suitable for protection of PV String wiring for 1000VDC industrial rooftop and utility scale Photovoltaic Systems
- Low fault current interrupting capability
- Temperature cycle withstand capability
- Guaranteed operation at temperature extremes
- UL Listed UL2579 - File E333668, CSA - C22.2, IEC 60269-6 Approved, CE
Specifications
Technical Data
Manufacturer
:
Mersen
Series
:
DCT
Fuse Type
:
Cylindrical PV
Current Rating (A)
:
12A
Voltage Rating (Vac)
:
750 Vac
AC Breaking Capacity (kA)
:
100 kA
Voltage Rating (Vdc)
:
1000 Vdc
DC Breaking Capacity (kA)
:
50 kA
Size
:
10x38mm
Total I2t Value A2s
:
215.0
Power Loss (W)
:
2.0 W
Fuse Blown Indicator
:
NA
Standards
:
UL Recognised File E60314; CSA; CE
Approvals
:
UL/CSA/CE
Country of Origin
:
Mexico
